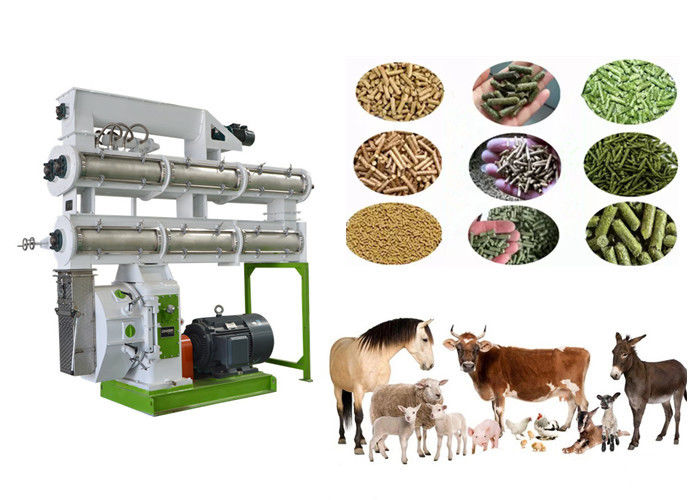

Pellet Production Equipment Grain Milling Machine Full Stainless Steel

Pellet Production Equipment Grain Milling Machine Full Stainless Steel

Pellet Production Equipment Grain Milling Machine Full Stainless Steel

Product Details:

Place of Origin: China
Brand Name: AMEC
Certification: CE/ISO
Model Number: Feed mill machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard exportation wooden case
Delivery Time: 7-9 work days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Item: Feed Mill Machine Capacity: 1-20T/H Feed Mill Machine
Raw Material: Grains/grass/soybean Cake, Etc Final Product: Poultry Livestock Feed Pellet Product
Pellet Size: 2-12mm Related Machine: Crusher/mixer/feed Pellet Machine

Pellet Production Equipment Grain Milling Machine Full Stainless Steel



Features of Ring Die Feed Mill Machine:


America CPM Model machine, high-strength precision gear drive, transmission efficiency can be as high as 99%. The normal belt transmission efficiency of 90% -95%, and easy to slip loose, life is short, when the belt becomes loose, transmission efficiency will drop a lot, in normal with the same power, gear drive Pellet machine output should be increased by 20% -30% than the belt drive.
1. Structure: Compact structure, beautiful appearance, easy installation, operation and maintenance;
2. Conditioner: Single layer, multilayer ,normal and enlarged full stainless steel conditioner can be selected;
3. Feeder: Full stainless steel feeder,frequency converter control feeder flow;
4. Ring mode: Equipped with different aperture ring mode;
5. Application: Widely used in the production of livestock and poultry feed.



Advantages of Ring Die Feed Mill Machine:
1. Stainless steel ring die resists corrosion,has long service life and guarantees high quality pellets.
2. High quality gearbox of this ring die pellet machine can adjust the speed timely,avoiding blockage.
3. Using imported SKF bearings&NSK oil seals to get better transmission performance,stable operating,and less noise.
4. Driven by high precision gear which ensures high productivity,low noise and low energy-consumption.
5. Lubricating system is adopted, which automatically lubricates each main bearing and oil seal so as to improve the machine reliability and service life.
6. Permanent magnet device can remove impurities in the pelletizing process
7. Feeder,conditioner and discharge chute are made of stainless steel,resulting in durability.
8. Rotational speed of feeder is adjustable,can meet the requirement of capacity when different materials are produced
9. Convenient maintenance and operation.



Main Parameters of Ring Die Feed Mill Machine:

Model

SZLH250

SZLH320

SZLH350

SZLH 400

SZLH 420

SZLH508

Main Motor Power (kw)

22

37

55

90

110

160

Conditioner Power (kw)

1.5

2.2

2.2

3

5.5

7.5

Dia of mould (mm)

250

320

350

400

420

508

Feeder Power (kw)

0.75

1.5

1.5

1.5

1.5

2.2

Size of Finished pellets (mm)

1.5-12

1.5-12

1.5-12

1.5-18

1.5-18

1.5-18

Yeild (t/h) for animal feed

1-2

2-4

2-6

3-8

4-12

4-18





FAQ
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 37 years experience and own research and development team.
2. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
