Place of Origin: | China |
Brand Name: | AMEC |
Certification: | CE/ISO |
Model Number: | Chicken feed production equipment |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | standard exportation wooden case |
Delivery Time: | 7-9 work days |
Payment Terms: | T/T L/C Western Union |
Supply Ability: | 30 sets/month |
Item: | Chicken Feed Production Equipment | Capacity: | 1-20T/H Chicken Feed Production Equipment |
---|---|---|---|
Raw Material: | Grains/grass/soybean Cake, Etc | Final Product: | Poultry Livestock Chicken Feed Pellet Product |
Pellet Size: | 2-12mm | Related Machine: | Crusher/mixer/feed Pellet Machine |

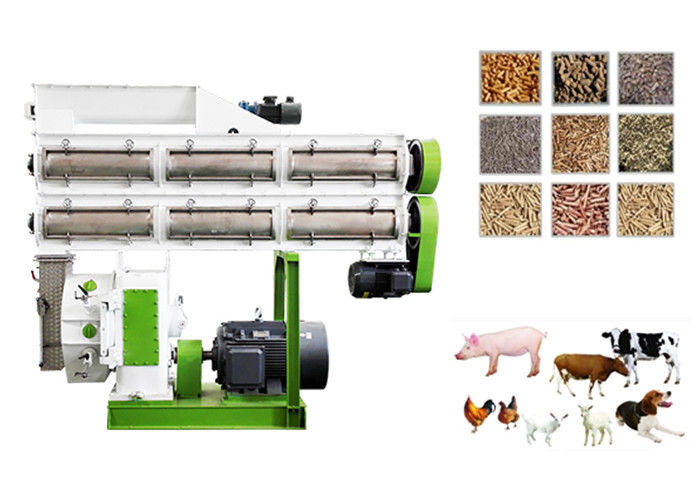

Livestock Animal Feed Production Plant Grains Soybean Cake Raw Material
Features of Ring Die Poultry Livestock Chicken Feed Production Equipment:
America CPM Model machine, high-strength precision gear drive, transmission efficiency can be as high as 99%. The normal belt transmission efficiency of 90% -95%, and easy to slip loose, life is short, when the belt becomes loose, transmission efficiency will drop a lot, in normal with the same power, gear drive Pellet machine output should be increased by 20% -30% than the belt drive.
1. Structure: Compact structure, beautiful appearance, easy installation, operation and maintenance;
2. Conditioner: Single layer, multilayer ,normal and enlarged full stainless steel conditioner can be selected;
3. Feeder: Full stainless steel feeder,frequency converter control feeder flow;
4. Ring mode: Equipped with different aperture ring mode;
5. Application: Widely used in the production of livestock and poultry feed.
Advantages of Ring Die Poultry Livestock Chicken Feed Production Equipment:
1. Host bearings generally use the top ten brands in the world of NSK (Japan), SKF (Switzerland) bearings, reliable quality, long service life!
2. In.the rear of pellet machine has the protection switch device , when the spindle bearing and spindle lock, the power can be cut off in time, the spindle has an effective protection effect!
3. Feeder spindle, screw, sleeve, paddle are 304 stainless steel,bearing is SKF brand,longer life.
4. The gap between paddle and the bottom is less than 4mm, the material basically no residue, no manual cleaning residue,but other manufacturers is generally 8-10mm, more material leftovers, If the labor can not be timely clean-up, material cross-contamination, if for a long time production is also easy to pests!
5. Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel, Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do!
6. Pellet machine door with 304 stainless steel, other use ordinary carbon steel, pellets from the machine high temperature, moisture, ordinary carbon steel life is generally about six months, and The service life of stainless steel is long-term!
Main Parameters of Ring Die Poultry Livestock Chicken Feed Production Equipment:
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH 400 |
SZLH 420 |
SZLH508 |
Main Motor Power (kw) |
22 |
37 |
55 |
90 |
110 |
160 |
Conditioner Power (kw) |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
Dia of mould (mm) |
250 |
320 |
350 |
400 |
420 |
508 |
Feeder Power (kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
Size of Finished pellets (mm) |
1.5-12 |
1.5-12 |
1.5-12 |
1.5-18 |
1.5-18 |
1.5-18 |
Yeild (t/h) for animal feed |
1-2 |
2-4 |
2-6 |
3-8 |
4-12 |
4-18 |
FAQ
Q:Could you offer more information about the production, and quote a best price?
A:Yes, certainly, we can give some product catalogues, and company profile for your reference. You can choose one or some models, and I will advice suitable model for you, enclosed the price list.
Q:Are you manufacture or a trading company?
A:we are manufacture ,we sincerely welcome you to visit our factory.
Q:The price is a little higher than my target. Can you offer a better price?
A:Yes, we will do our best to calculate a best price, or change quantity, replaced model, other payments, etc. We can discuss, and put forward a win-win solution, hope to establish a long term cooperation relationship with you.
