Place of Origin: | China |
Brand Name: | AMEC |
Certification: | CE/ISO |
Model Number: | Water drop animal feed crushing machine |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | standard exportation wooden case |
Delivery Time: | 7-9 work days |
Payment Terms: | T/T L/C Western Union |
Supply Ability: | 30 sets/month |
Item: | Water Drop Animal Feed Crushing Machine | Function: | Crushing Corn Maize Grain Wheat, Etc |
---|---|---|---|
Application: | Industrial Hammer Crushing Machine | Capacity: | 1-20t/h |
Power: | 30-110kw | Warranty: | 1 Year |

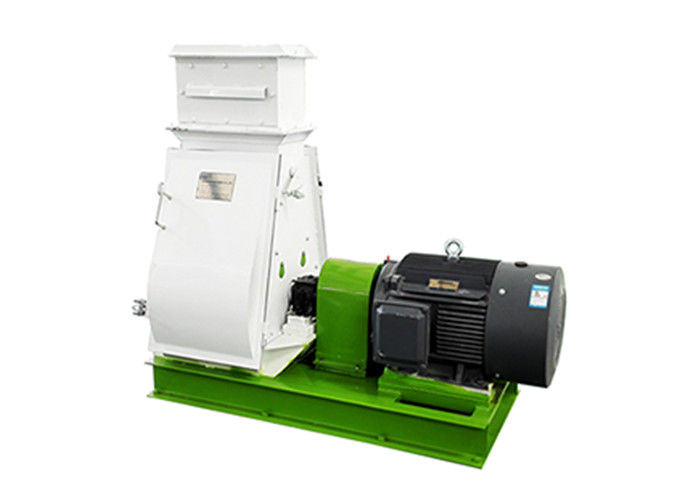

High Yield Poultry Hammer Mill Grinder Water Drop Animal Feed Crushing Machine
Features of Water Drop Animal Feed Crushing Machine:
1. SFSP Industrial chicken food powder making machine mainly used for grinding of raw material for hen.
2. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running, that production
efficiency is elevated,and service life of equipment is extended.
3. SFSP series hens feed crusher’s feeding system has frequency control of motor speed and electromagnetic coupling
for choice, that the speed of feed could be adjusted , also could increase or reduce the input amount according to the size of sieve holes.
4. Rotor diameter is small, hammer wire-speed low, ensure the crushing particle plump.
5.Main transmission adopts gear drive with high precision,Ring die adopt the quick-release hoop type,convenient to remove.
6.Compact structure, beautiful appearance, high yield, less consumption, easy to use,quick to maintenance.
Feature of Animal Feed Crushing Machine:
High-efficiency and large-capacity grinding.
Easy and fast to clean or replace the screen.
Screen and hammer is durable by heat treating.
Optional to equip with the feeder.
Widely used for grinding grain into a wide range of particle sizes.
Widely used in flour mill, feed mill and biomass industries.
Main Parameters of Water Drop Animal Feed Crushing Machine:
Model |
Output capacity(t/h) |
Main motor power(kw) |
Hammer No.(pcs) |
Diameter of the Rotor(mm) |
speed of main shaft (r/min) |
width of chamber(mm) |
Dimension (mm) |
SFSP56x40 |
12-18 |
15/18.5 |
48 |
560 |
1440 |
400 |
1805×850×1105 |
SFSP56x60 |
16-25 |
22/30 |
72 |
560 |
1440 |
600 |
2005×850×1105 |
SFSP60x40 |
2--5 |
30/37 |
56 |
600 |
2930 |
400 |
1805×850×1105 |
SFSP60x60 |
3-7 |
45/55 |
96 |
600 |
2930 |
600 |
2005×850×1105 |
SFSP60x80 |
7-13 |
75/90 |
128 |
600 |
2930 |
800 |
2205×850×1105 |
SFSP66x60 |
2.5-9 |
55/75 |
64 |
660 |
2970 |
600 |
2115×1340×1455 |
SFSP66x80 |
5-13 |
90/110 |
88 |
660 |
2970 |
800 |
2620×1340×1455 |
SFSP66x100 |
7-18 |
132/160 |
128 |
660 |
2970 |
1000 |
3020×1345×1455 |
SFSP132x36 |
10-15 |
75/90 |
36 |
1320 |
1440 |
360 |
2320×2016×2113 |
SFSP132x65 |
15-20 |
132/160 |
64-96 |
1320 |
1440 |
650 |
2610×2016×2113 |
Characteristics
1. Simple structure, wide application, small floor space, low noise level
2. Only need to add a little amount of liquid or no need at all to make powdery feed and grass meal into granules.Thus moisture content of granule feed is basically the same moisture content before granulation, so as to be easily stored.
3. Feed of chicken, duck, fish etc guarantees higher economic benefit than mixing powdery feed.
4. Feed granules made from dry materials are with higher hardness level, smooth surface, cooked inside and will make nutrition easily digested.
5. The formation process of granules will make pancreatic enzyme boycott factor in grains and beans denaturized, to reduce bad effects on digestion and kill all kinds of parasite eggs and other pathogenic microorganisms and reduce all kinds of parasitic and digestive system diseases.
