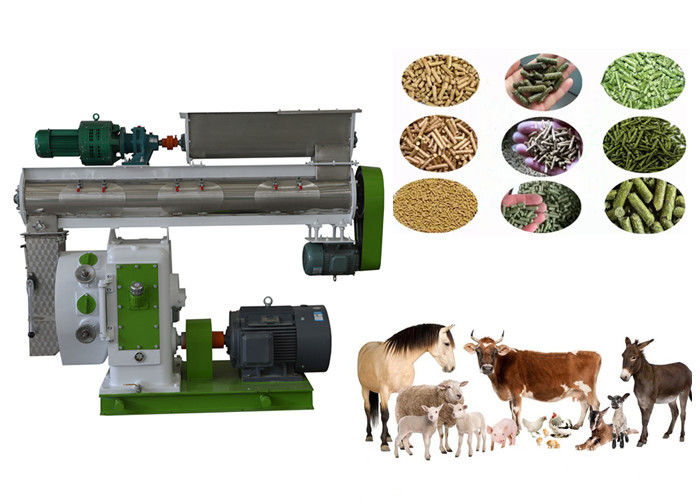

High Efficiency Animal Feed Production Plant High Strength Precision Gear Drive

High Efficiency Animal Feed Production Plant High Strength Precision Gear Drive

High Efficiency Animal Feed Production Plant High Strength Precision Gear Drive

Product Details:

Place of Origin: China
Brand Name: AMEC
Certification: CE/ISO
Model Number: Pellet production machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard exportation wooden case
Delivery Time: 7-9 work days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Item: Pellet Production Machine Capacity: 1-20T/H Feed Pellet Production Machine
Raw Material: Grains/grass/soybean Cake, Etc Final Product: Poultry Livestock Animal Feed Pellet Product
Pellet Size: 2-12mm Related Machine: Crusher/mixer/feed Pellet Machine

High Efficiency Animal Feed Production Plant High Strength Precision Gear Drive


Features of Ring Die Feed Pellet Production Machine:
America CPM Model feed pellet production machine, high-strength precision gear drive, transmission efficiency can be as high as 99%. The normal belt transmission efficiency of 90% -95%, and easy to slip loose, life is short, when the belt becomes loose, transmission efficiency will drop a lot, in normal with the same power, gear drive Pellet machine output should be increased by 20% -30% than the belt drive.


Advantages of Ring Die Feed Pellet Production Machine:
1. Host bearings generally use the top ten brands in the world of NSK (Japan), SKF (Switzerland) bearings, reliable quality, long service life!
2. In.the rear of pellet machine has the protection switch device , when the spindle bearing and spindle lock, the power can be cut off in time, the spindle has an effective protection effect!
3. Feeder spindle, screw, sleeve, paddle are 304 stainless steel,bearing is SKF brand,longer life.
4. The gap between paddle and the bottom is less than 4mm, the material basically no residue, no manual cleaning residue,but other manufacturers is generally 8-10mm, more material leftovers, If the labor can not be timely clean-up, material cross-contamination, if for a long time production is also easy to pests!
5. Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel, Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do!


Main Parameters of Ring Die Feed Pellet Production Machine:

Model

SZLH250

SZLH320

SZLH350

SZLH 400

SZLH 420

SZLH508

Main Motor Power (kw)

22

37

55

90

110

160

Conditioner Power (kw)

1.5

2.2

2.2

3

5.5

7.5

Dia of mould (mm)

250

320

350

400

420

508

Feeder Power (kw)

0.75

1.5

1.5

1.5

1.5

2.2

Size of Finished pellets (mm)

1.5-12

1.5-12

1.5-12

1.5-18

1.5-18

1.5-18

Yeild (t/h) for animal feed

1-2

2-4

2-6

3-8

4-12

4-18



FAQ
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 37 years experience and own research and development team.
2. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
