Easy Operate Chicken Pellet Cooling System Low Energy Consumption CE Certificate

Easy Operate Chicken Pellet Cooling System Low Energy Consumption CE Certificate

Easy Operate Chicken Pellet Cooling System Low Energy Consumption CE Certificate

Product Details:

Place of Origin: China
Brand Name: AMEC
Certification: CE/ISO
Model Number: Pellet cooling machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard exportation wooden case
Delivery Time: 7-9 work days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Item: Pellet Cooling Machine Function: Cooling Poultry Animal Feed Pellet
Capacity: 3-20t/h Power: 1.12-2.05kw
Type: Counterflow Type Pellet Cooling Machine Application: Feed Factory/plant

Easy Operate Chicken Pellet Cooling System Low Energy Consumption CE Certificate

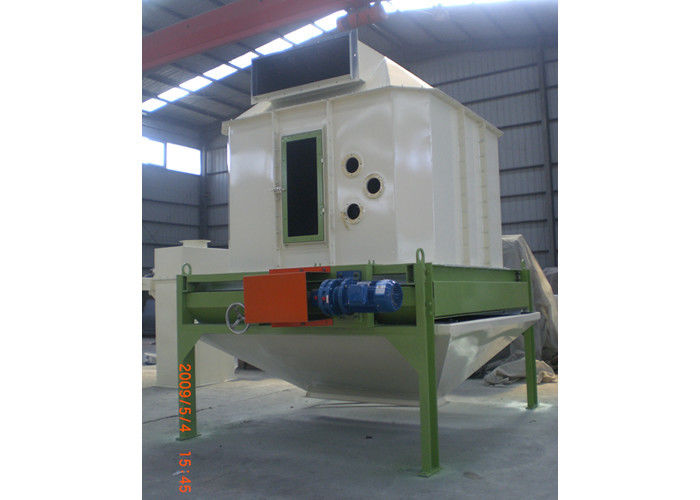

Introduction of Counterflow Pellet Cooling Machine:

After the pelletizing process, the temperature of the feed/wood pellet is about 60-80 degree, and the moisture content of the pellet is about 15%, so we need use cooler to reduce about 3-4% moisture, such this the feed pellet is easy to store. In the process,we choose SKLN series Counterflow pellet cooling machine.





Main Features of Counterflow Pellet Cooling Machine:

1. The high temperature and humidity particles are cooled by counter-current cooling principle, which avoids the sudden cooling phenomenon caused by the direct contact between cold air and hot materials, thus preventing the surface cracking of particles.

2.  The cooling effect is remarkable due to the use of closed air feeding and large air intake area.

3. Adopting the turning plate layout structure, the movement is stable, reliable, the residue is small, and the finished product is not damaged;

4. The octagonal section of the cooling silo eliminates the dead angle of cooling, which is low in energy consumption and easy to operate.

5. After cooling, the temperature of finished product is not higher than room temperature 3 ~5℃

6. It is suitable for cooling various granular materials, such as granulating materials, expanding materials, sheeting materials, etc.





Main Parameters of Counterflow Pellet Cooling Machine:

Model

SKLN14X14

SKLN17X17

SKLN20X20

SKLN24X24

Output(t/h)

3

5

10

20

Volume(m3)

1.5

2.5

4

8

Cooling time(min)

>6-10

>6-10

>6-10

>6-10

Material temperature after cooling

3-5 degree higher than room temperature

3-5 degree higher than room temperature

3-5 degree higher than room temperature

3-5 degree higher than room temperature

Power(kw)

0.75+0.37

0.75+0.55

1.5+0.55

1.5+0.55
