Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line

Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line

    • Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line
    • Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line
  • Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line

    Product Details:

    Place of Origin: China
    Brand Name: AMEC
    Certification: CE/ISO
    Model Number: Counterflow Feed Pellet Cooler

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: standard exportation wooden case
    Delivery Time: 7-9 work days
    Payment Terms: T/T L/C Western Union
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description
    Item: Counterflow Feed Pellet Cooler Function: For Cooling Feed Pellet
    Capacity: 3-20t/h Power: 1.12-2.05kw

    Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line

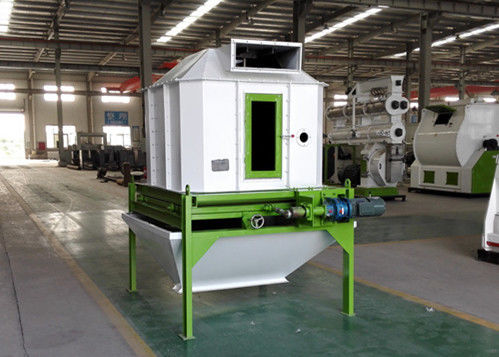

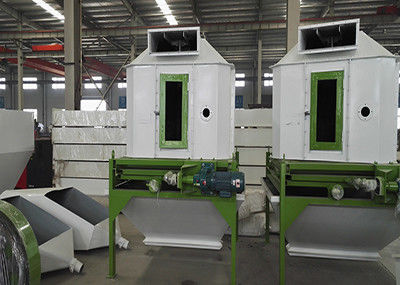

    SKLN series counter-flow cooling machine is widely used in the cooling treatment section of the feed industry. It is suitable for the cooling of various pellet feeds, such as granulating materials, expansion materials, extruded materials, tablet materials and so on other pellet type materials.

    Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line

    Big Capacity Pellet Cooling System Stainless Steel For Complete Feed Pellet Line





    Features of Counterflow Feed Pellet Cooling Machine:

    1. New cooling equipment which incorporates the worldwide most advanced cooling technology.

    2. The octagonal shape cooling chamber has no cooling dead angle, which is beneficial to the cooling effects of the material.

    3. During production, the inner layer of the cooler is uniform. The temperature of the pellets after being cooled is no higher than room temperature by 5 degrees, and the moisture of the cooled pellet is ≤13%(moisture of raw grain is around 13%).

    4. The discharge frame is flexible and smooth, and the operation is stable and reliable.

    5. This machine is mainly used for cooling the high temperature&humidity feed pellet after pelleting or puffing.





    Main Parameters of Counterflow Animal Feed Cooling Machine:

    Model

    SKLN14X14

    SKLN17X17

    SKLN20X20

    SKLN24X24

    Output(t/h)

    3

    5

    10

    20

    Volume(m3)

    1.5

    2.5

    4

    8

    Cooling time(min)

    >6-10

    >6-10

    >6-10

    >6-10

    Material temperature after cooling

    3-5 degree higher than room temperature

    3-5 degree higher than room temperature

    3-5 degree higher than room temperature

    3-5 degree higher than room temperature

    Power(kw)

    0.75+0.37

    0.75+0.55

    1.5+0.55

    1.5+0.55





    FAQ
    1. Q: Are you a trading company or a manufacturer?
    A:we are the manufacturer , which has about 37 years experience and own research and development team.
    2. Q: How to order ?
    A: Step 1, please tell us what model and quantity you need;
    Step 2, then we will make a PI for you to confirm the order details;
    Step 3, when we confirmed everything, can arrange the payment;
    Step 4, finally we deliver the goods within the stipulated time.
    3. Q: When will make delivery ?
    A: Delivery Time
    As usual, 7-15 days after getting payment. (Specific time according to order quantity)
    4.Payment
    L/C, T/T, Western Union, Paypal
    5. Transportation
    Transported by sea, by air or by express.
    6. After-sales Service
    As an experienced manufacturer, you can rest assured of the quality and after- sales service.
