Auto Pellet Cooling Machine Counterflow Cooler For Feed Factory / Plant

Auto Pellet Cooling Machine Counterflow Cooler For Feed Factory / Plant

Auto Pellet Cooling Machine Counterflow Cooler For Feed Factory / Plant

Product Details:

Place of Origin: China
Brand Name: AMEC
Certification: CE/ISO
Model Number: Counterflow cooler

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard exportation wooden case
Delivery Time: 7-9 work days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Item: Counterflow Cooler Function: For Cooling Poultry Animal Feed Pellet
Capacity: 3-20t/h Power: 1.12-2.05kw
Type: Counterflow Type Pellet Cooling Machine Application: Feed Factory/plant

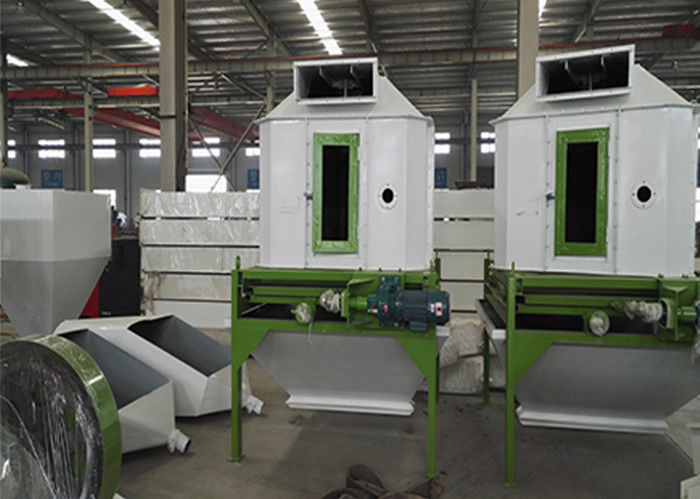

Auto Pellet Cooling Machine Counterflow Cooler For Feed Factory / Plant





Introduction of Counterflow Cooler:

Counterflow cooler is the most advanced pellet feed cooling technology in the world. It is mainly used for cooling high temperature pellet feed after granulation. The machine has a unique cooling mechanism, Reverse Movement of Cooling Air and High Temperature and Humidity Material. The material is gradually cooled from top to bottom,It avoids the shortcomings of material surface cracking caused by sudden cooling in general vertical cooler, and the difficulty of moisture and heat dissipation in the core. The cooling effect is superior to the existing domestic similar products. After cooling, the material's temperature is not higher 5℃ than the outside temperature, and the precipitation rate is not less than 3.8%. It plays a good role in producing high quality pellet feed, prolonging the storage time of pellet feed and improving economic benefits.





Main Features of Counterflow Cooler:

1. The high temperature and humidity particles are cooled by counter-current cooling principle, which avoids the sudden cooling phenomenon caused by the direct contact between cold air and hot materials, thus preventing the surface cracking of particles.

2.  The cooling effect is remarkable due to the use of closed air feeding and large air intake area.

3. Adopting the turning plate layout structure, the movement is stable, reliable, the residue is small, and the finished product is not damaged;

4. The octagonal section of the cooling silo eliminates the dead angle of cooling, which is low in energy consumption and easy to operate.

5. After cooling, the temperature of finished product is not higher than room temperature 3 ~5℃

6. It is suitable for cooling various granular materials, such as granulating materials, expanding materials, sheeting materials, etc.





Main Parameters of Counterflow Cooler:

Model

SKLN14X14

SKLN17X17

SKLN20X20

SKLN24X24

Output(t/h)

3

5

10

20

Volume(m3)

1.5

2.5

4

8

Cooling time(min)

>6-10

>6-10

>6-10

>6-10

Material temperature after cooling

3-5 degree higher than room temperature

3-5 degree higher than room temperature

3-5 degree higher than room temperature

3-5 degree higher than room temperature

Power(kw)

0.75+0.37

0.75+0.55

1.5+0.55

1.5+0.55





FAQ
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 37 years experience and own research and development team.
2. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
