| Place of Origin: | China |
| Brand Name: | AMEC |
| Certification: | CE/ISO |
| Model Number: | Chicken Feed Cooling Machine |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exportation wooden case |
| Delivery Time: | 7-9 work days |
| Payment Terms: | T/T L/C Western Union |
| Supply Ability: | 30 sets/month |
| Item: | Chicken Feed Cooling Machine | Function: | Cooling Chicken Feed Pellet |
|---|---|---|---|
| Capacity: | 3-20t/h | Power: | 1.12-2.05kw |
| Type: | Counterflow Type Chicken Feed Cooling Machine | Application: | Feed Pellet/wood Pellet Line |
| Highlight: | feed pellet cooler,counterflow pellet cooler |
||

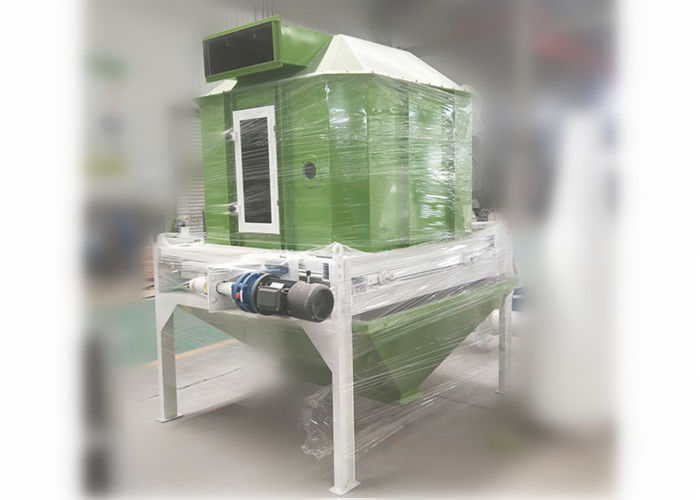

SKLN Series Pellet Cooling Machine Counterflow Pellet Cooler 3 - 20t/H
Animal Feed Pellet Cooling Machine is a type of counterflow cooling machine. It is mainly used for cooling the pellets in the pelleting section of particles in the factory.
The pellets after cooling not only increased the hardness, but also can prevent mildew, they are also easy to transport and store pellets.
It is also applied to cool a variety of materials, such as pellets, extruded materials, expansion materials, pressure-chip material, powder, etc, especially extruded materials, expansion materials.
Main Features & Applications of Counter Flow Chicken Feed Cooling Machine:
1. SKLN series counter flow cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.
2. SKLN series counter flow cooler is structurally arranged in a vertical way, the appearance is simple and beautiful;
3. On the principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging;
4. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials;
5. The novel rotary spreader ensures materials for uniform and complete cooling with reduced breakage, featuring adjustable range of material distribution and lowered power consumption;
6. There are some pressure-relief plates provided above the discharging device, which can greatly improve the working load of the discharging device, reduce SKLN series counterflow cooler’s distortion, and extend the service life of the component parts;
Main Parameters of Counter Flow Chicken Feed Cooling Machine:
| Model | SKLN14X14 | SKLN17X17 | SKLN20X20 | SKLN24X24 |
| Output(t/h) | 3 | 5 | 10 | 20 |
| Volume(m3) | 1.5 | 2.5 | 4 | 8 |
| Cooling time(min) | >6-10 | >6-10 | >6-10 | >6-10 |
| Material temperature after cooling | 3-5 degree higher than room temperature | 3-5 degree higher than room temperature | 3-5 degree higher than room temperature | 3-5 degree higher than room temperature |
| Power(kw) | 0.75+0.37 | 0.75+0.55 | 1.5+0.55 | 1.5+0.55 |
FAQ
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 37 years experience and own research and development team.
2. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
