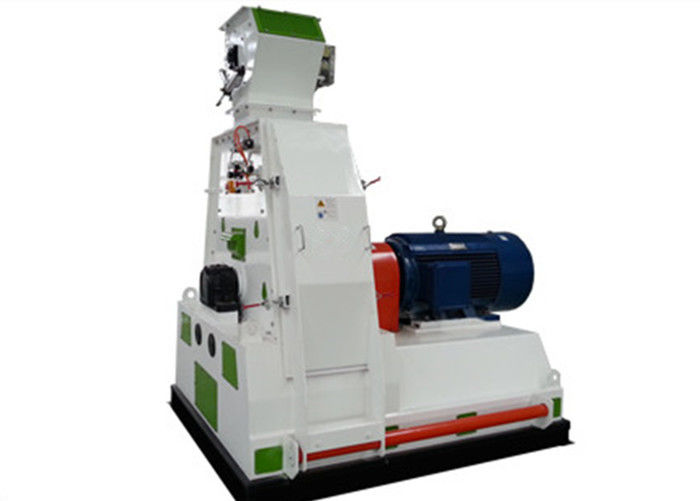

Name: High Efficiency Hammer Grinder Machine Chicken Feed Hammer Crusher U Shaped
Brand: CHANGZHOU MACHINERY & EQUIPMENT IMP.&EXP. CO.,LTD
SKU: Chicken feed crushing machine
Availability: InStock

Home Products Hammer Grinder Machine

High Efficiency Hammer Grinder Machine Chicken Feed Hammer Crusher U Shaped

Product Details:

Place of Origin:	China
Brand Name:	AMEC
Certification:	CE/ISO
Model Number:	Chicken feed crushing machine

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	standard exportation wooden case
Delivery Time:	7-9 work days
Payment Terms:	T/T L/C Western Union
Supply Ability:	30 sets/month

Contact Now

Detailed Product Description

Item:	Chicken Feed Crushing Machine	Function:	Crushing Corn Maize Grain Wheat Into Powder
Application:	Industrial Chicken Feed Crushing Machine	Capacity:	1-20t/h
Power:	30-110kw	Warranty:	1 Year
Highlight:	hammer mill grinder , grinding mill machine

High Efficiency Hammer Grinder Machine Chicken Feed Hammer Crusher U Shaped

Features of Water Drop Type Chicken Feed Crushing Machine:

1. Application: used for grinding of poultry and livestock and aqua feed.

2. Feeder : has frequency control of motor speed and electromagnetic coupling for choice, that the speed of feed could be adjusted.

3.Structure: “U” shaped double grinding structure, increase the beating frequency of product , guarantee the more uniform particle size, also increase the output.

4. Advantage:equipped with safety control system ,high capacity,smooth running,long service life.

5.The following form is under the condition:raw material is corn,water content ≤14 % , the diameter of sieve hole is 1.0-2.0mm.

Operation Instructions of Water Drop Type Chicken Feed Crushing Machine:

1. The operator should understand thefeed grinder machine structure, and be familiar with the machine performace and operation methods.
2. Please carefully check each connection parts to avoid loose phenomenon.
3. With uniform feeding during the production rather than suddenly more or less to guarantee the motor work underrated load.
4. If strong vibration appears in the operation process, you should immediately stop the machine and find out the reasons, then continue.

Main Parameters of Water Drop Type Chicken Feed Crushing Machine:

Model	Output capacity(t/h)	Main motor power(kw)	Hammer No.(pcs)	Diameter of the Rotor(mm)	speed of main shaft (r/min)	width of chamber(mm)	Dimension (mm)
SFSP56x40	12-18	15/18.5	48	560	1440	400	1805×850×1105
SFSP56x60	16-25	22/30	72	560	1440	600	2005×850×1105
SFSP60x40	2--5	30/37	56	600	2930	400	1805×850×1105
SFSP60x60	3-7	45/55	96	600	2930	600	2005×850×1105
SFSP60x80	7-13	75/90	128	600	2930	800	2205×850×1105
SFSP66x60	2.5-9	55/75	64	660	2970	600	2115×1340×1455
SFSP66x80	5-13	90/110	88	660	2970	800	2620×1340×1455
SFSP66x100	7-18	132/160	128	660	2970	1000	3020×1345×1455
SFSP132x36	10-15	75/90	36	1320	1440	360	2320×2016×2113
SFSP132x65	15-20	132/160	64-96	1320	1440	650	2610×2016×2113

Characteristics

1. Simple structure, wide application, small floor space, low noise level

2. Only need to add a little amount of liquid or no need at all to make powdery feed and grass meal into granules.Thus moisture content of granule feed is basically the same moisture content before granulation, so as to be easily stored.

3. Feed of chicken, duck, fish etc guarantees higher economic benefit than mixing powdery feed.

4. Feed granules made from dry materials are with higher hardness level, smooth surface, cooked inside and will make nutrition easily digested.

5. The formation process of granules will make pancreatic enzyme boycott factor in grains and beans denaturized, to reduce bad effects on digestion and kill all kinds of parasite eggs and other pathogenic microorganisms and reduce all kinds of parasitic and digestive system diseases.

High Efficiency Hammer Grinder Machine Chicken Feed Hammer Crusher U Shaped
