| Place of Origin: | China |
| Brand Name: | AMEC |
| Certification: | CE/ISO |
| Model Number: | Poultry Feed Production Machines |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exportation wooden case |
| Delivery Time: | 7-9 work days |
| Payment Terms: | T/T L/C Western Union |
| Supply Ability: | 30 sets/month |
| Item: | Poultry Feed Production Machines123456 96 | Capacity: | 1-20T/H |
|---|---|---|---|
| Function: | For Making Poultry Animal Cattle Poultry Feed Pellet | Pellet Machine: | Ring Die Poultry Feed Production Machines |
| Related Machine: | Grain Crusher/poultry Feed Mixing Machine | Bearing: | SKF |
| Highlight: | poultry feed production machines,pellet production equipment |
||

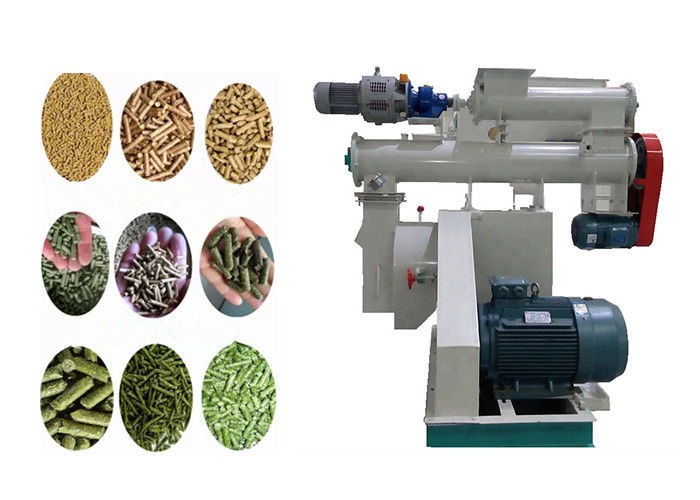

Chicken Pig Poultry Feed Production Machines Ring Die 1 - 20T/H Capacity
This ring die poultry feed production machines can be used to make feed pellets for all ages chicken and other poultry. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry. The feed pellet can be used to your farm to use, can also be used for marketing.
Features and Advantages of Ring Die Poultry Feed Production Machines:
1. The main transmission gear drive with high precision, USES the quick-release ring mould type of anchorear type, output is about 20% higher than belt-type drive.
2. The machine transmission parts (including the motor) choose Switzerland, Japan high quality bearing, ensure the transmission efficiency and stability, low noise
3. All stainless steel with large strengthening feed conditioning, adopt frequency control of motor speed control, to ensure that the pellet feed of high quality.
4. Adopting international advanced German vacuum heat treatment furnace gun drill, and the United States and added to the manufacturing process of alloy steel ring die, long service life, the grain is smooth, high quality.
5. The international advanced level of compensation type of snake coiled spring coupling, has the advantages of novel structure, compact, safe performance, low noise, low malfunction.
6. High performance permanent magnetic iron absorption device.
7. Adopt international advanced pipeline system and the import pressure regulating valve.
8. Can be customized double, three layers of conditioner, HIGH-GRADE double-shaft differential modulator conditioner or TOP-GRADE Stainless steel sanitary conditioner pellet mill, production of high quality poultry or aquatic feed pellet.
Main Parameters of Ring Die Poultry Feed Production Machines:
|
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH 400 |
SZLH 420 |
SZLH508 |
|
Main Motor Power (kw) |
22 |
37 |
55 |
90 |
110 |
160 |
|
Conditioner Power (kw) |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
|
Dia of mould (mm) |
250 |
320 |
350 |
400 |
420 |
508 |
|
Feeder Power (kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
|
Size of Finished pellets (mm) |
1.5-12 |
1.5-12 |
1.5-12 |
1.5-18 |
1.5-18 |
1.5-18 |
|
Yeild (t/h) for animal feed |
1-2 |
2-4 |
2-6 |
3-8 |
4-12 |
4-18 |
Our Services
1. Reply your inquiry within 24 working hours.
2. Experienced staffs answer all your question in professional and fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well- trained and professional engineers.
We Focus on Complete Feed Production Line:
