| Place of Origin: | China |
| Brand Name: | AMEC |
| Certification: | CE/ISO |
| Model Number: | 1-2T/H |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exportation wooden case |
| Delivery Time: | 7-9 work days |
| Payment Terms: | T/T L/C Western Union |
| Supply Ability: | 30 sets/month |
| Item: | Chicken Feed Making Machine | Capacity: | 1-2t/h |
|---|---|---|---|
| Function: | For Making Animal Chicken Feed Pellets | Raw Material: | Grain/corn/wheat |
| Pellet Size: | 2mm-12mm | Voltage: | 220v/380v Or Customized |
| Highlight: | animal feed making machine,poultry feed manufacturing equipment |
||
220v / 380v Poultry Feed Making Machine Multi Functional Hen Food Making Machine

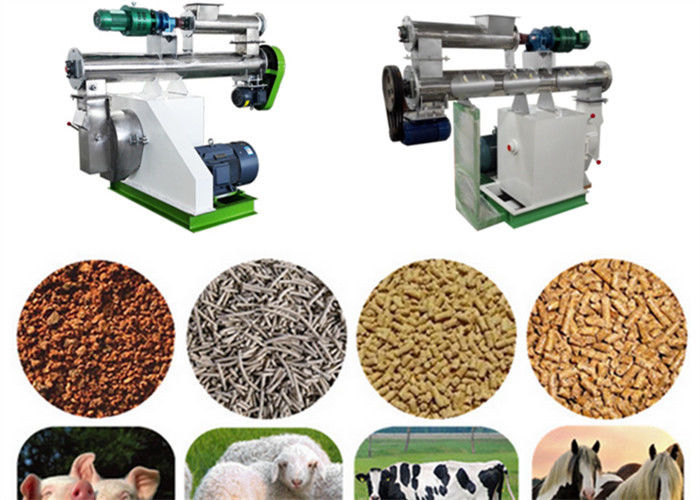

This series chicken feed making machine(ring die feed pellet machine) is used to make feed pellets for all kinds of animal/poultry: chicken, broiler, cattle, pig, duck, etc.
Poultry Feed Making Machine is an ideal pelletizing machine for high quality feed pellets. Before pelletizing, grains such as corn, wheat, rice and soybean etc. need to be crushed into powder. Also they should be mixed throughly with a mixer since other additives may be added to ensure a balanced feed formulation. The finished feed pellets have a smooth surface and easy to digest for animals. Therefore ring die feed pellet mill is widely adopted by livestock farm, poultry farm, feed processing industry and aquaculture.
Main Parameters of Ring Die Chicken Feed Making Machine:
|
Model |
Capacity (t/h) |
Power (kw) |
Feeding Power (kw) |
Conditioner Power (kw) |
Weight (kg) |
Dimension (mm) |
|
SZLH250 |
1-2t/h |
22kw |
0.55kw |
1.5kw |
1000kg |
1800*1000*1200 mm |
|
SZLH320 |
3-5t/h |
37kw |
1.5kw |
2.2kw |
2500kg |
2200*1000*1500 mm |
|
SZLH350 |
5-8t/h |
55kw |
1.5kw |
3.0kw |
3500kg |
2500*1100*1600 mm |
|
SZLH420 |
8-12t/h |
110kw |
2.2kw |
7.5kw |
4200kg |
3500*1200*1800 mm |
|
SZLH508 |
12-18t/h |
132/160kw |
2.2kw |
11kw |
5100kg |
/ |
Features of Ring Die Animal Feed Pellet Making Machine:
Stainless steel conditioner:
Conditioning Time
livestock feed :≥15-40s,equip single-layer conditioner
fish feed: ≥ 40-60s,equip double-shaft different speed conditioner+single-layer conditioner
or single-layer conditioner +single-layer conditioner.
Mono roller and small inner diameter of die .Available with die openings varied from φ2mm-12mm , satisfying different experimental designs' requirements.
1 All sections is made by stainless steel
2 Corrosion resistance,safety and health
3 With heat insulating layer
4 Dood effect at materials be cooked and sterilized
5 Conditioning time is 75-150s
6 Simple construction,ease of installation
7 Even discharging
8 High gelatinization: 45~50%.
9 Large side access door design for easy cleaning and maintenance.
Simens motor
SKF Bearing
Hoop type detachable ring die: quick detachable encircling ring die procesed by heat treatment vacuum furnace, increase output higher than belt drive by 20%, improves the service life and pellet produced is smooth with high quality.
HIgh precision gear, international advanced piping system and imported pressure regulating valve.
